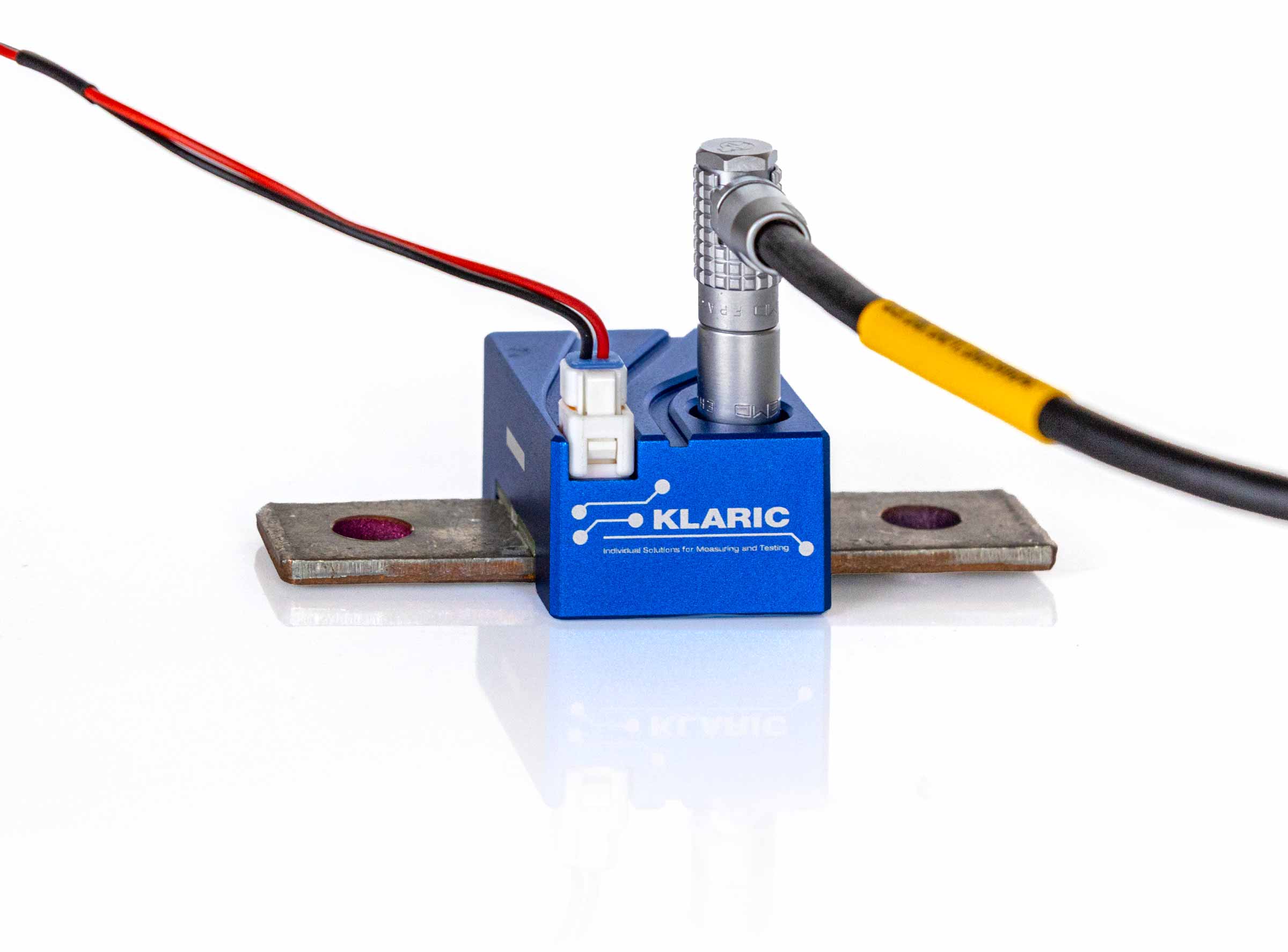

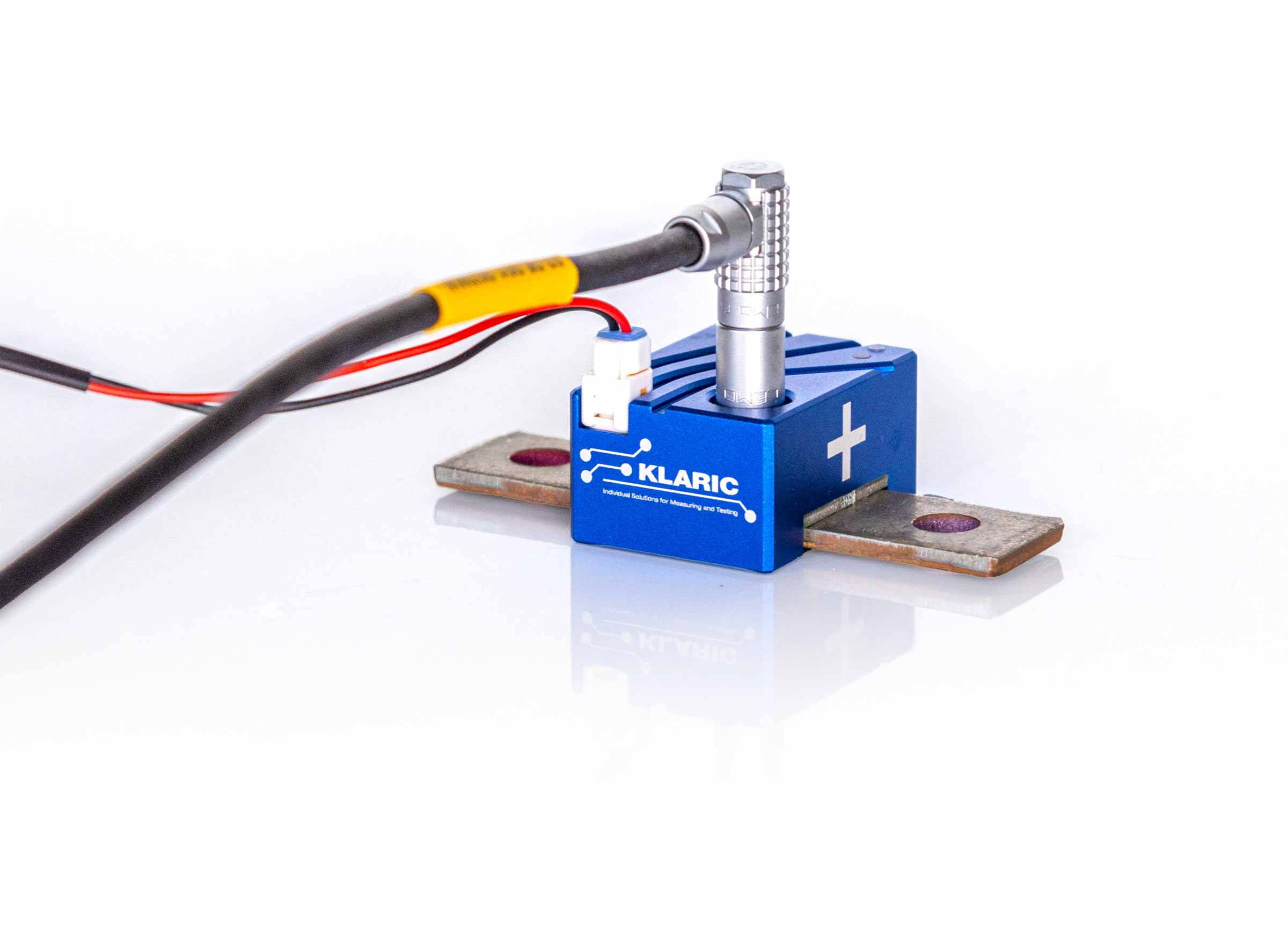

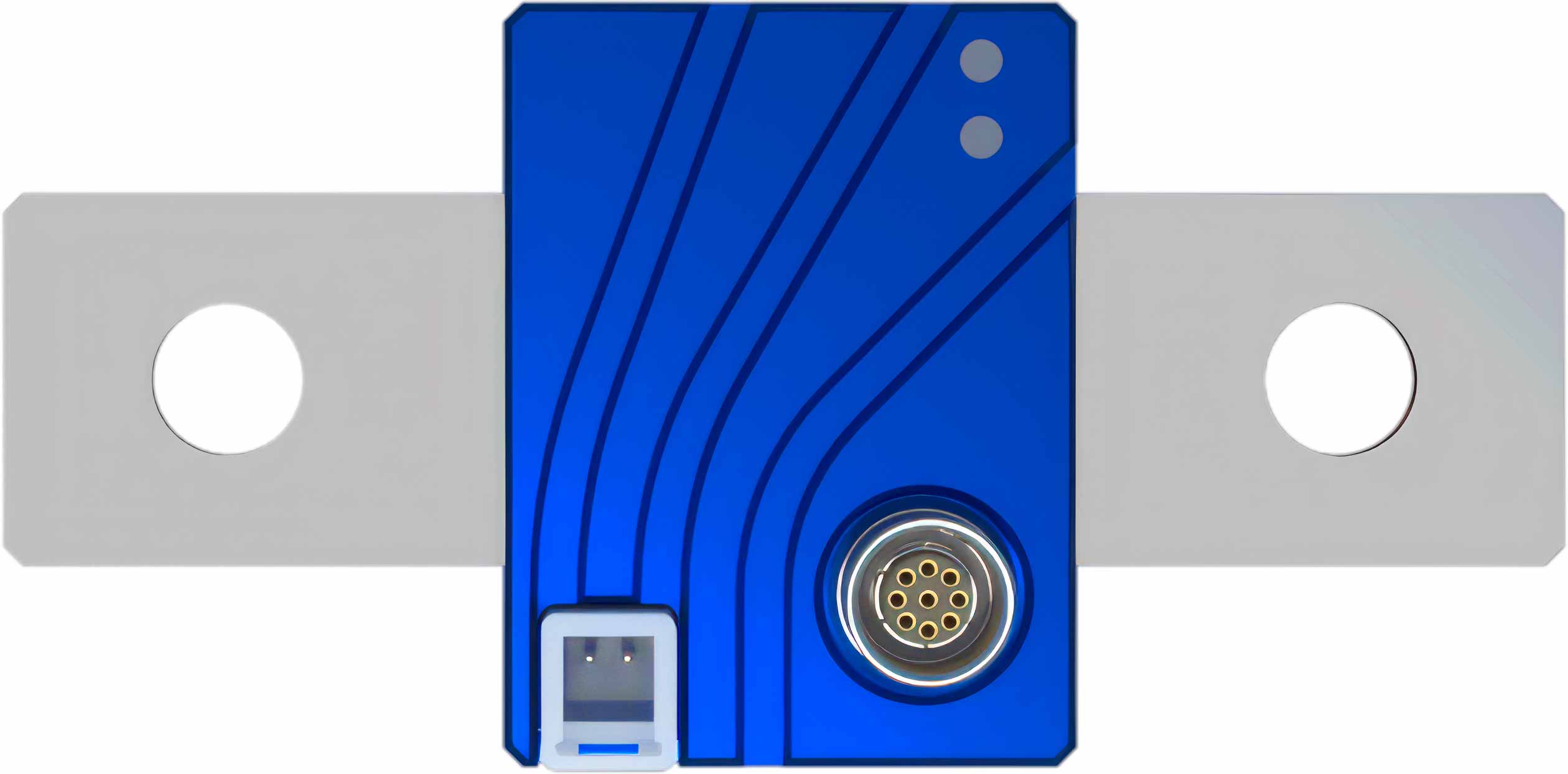

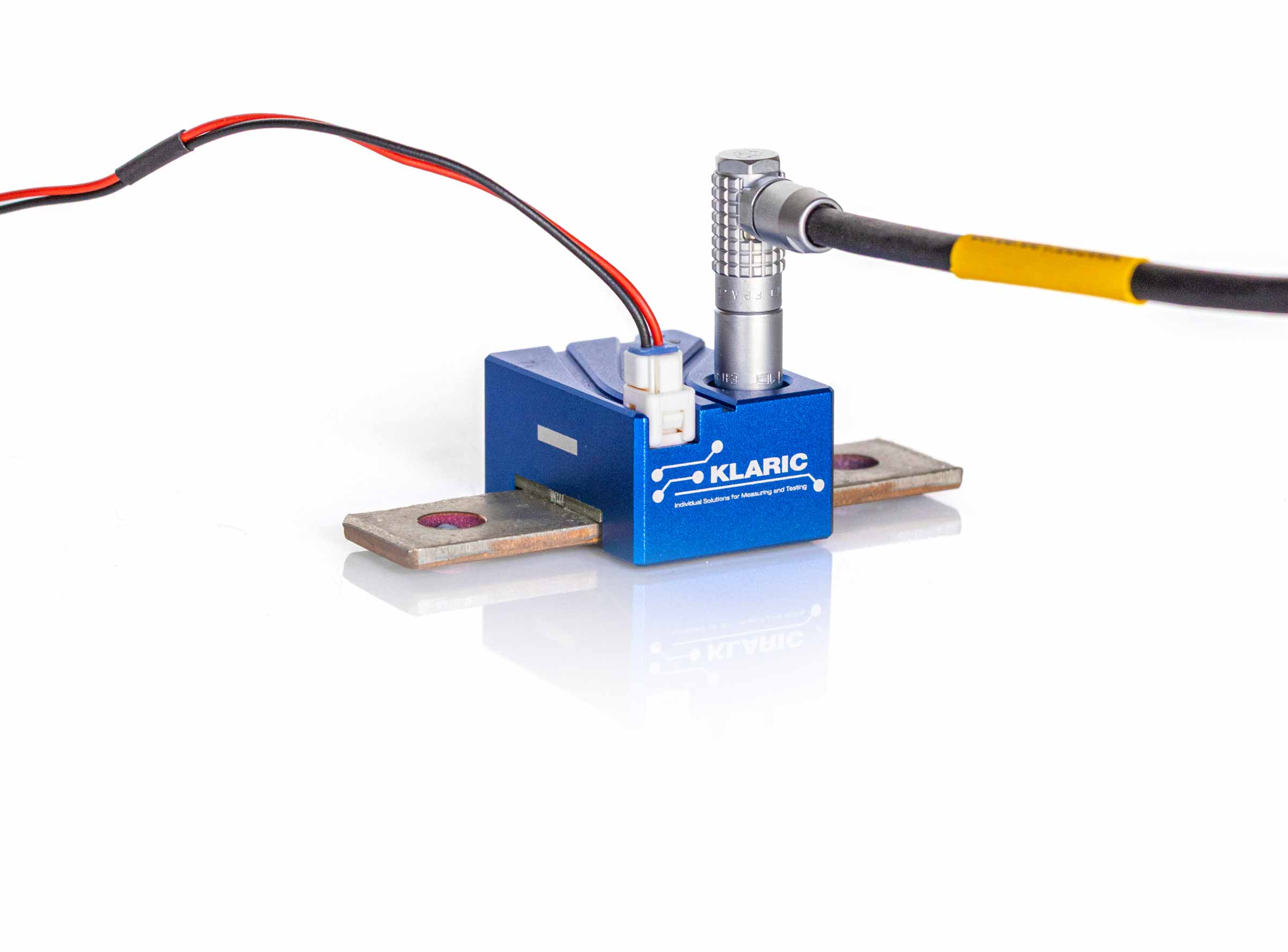

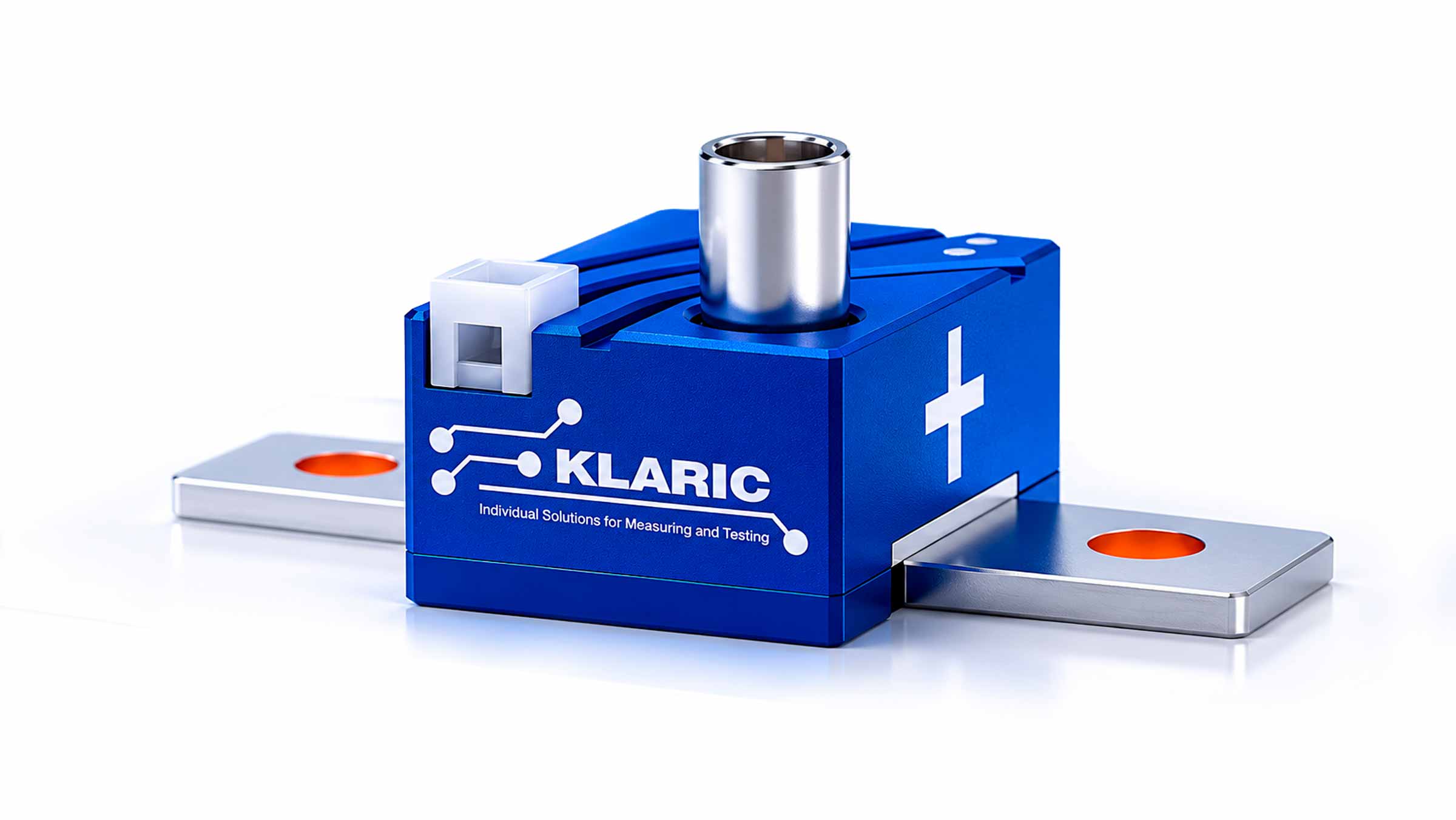

The FIX-IV is a very compact dual-channel measurement module for 12 V, 24 V and 48 V systems. Sensor and Data Processing electronics are permanently mounted on an internal precision shunt with connection lugs for direct installation in the current path — no probe, no adapter, no cable between sensor and module. Very short analogue signal paths and fully digital processing deliver excellent signal quality; the module is factory calibrated as one unit and starts measuring as soon as power is applied. Fewer connectors significantly shorten installation time.
Features
- 2-channel power measurement module (current and voltage)
- Precision shunt with connection lugs
- Autorange over 5 measurement ranges
- Status LED and CAN TERM LED
- Measurement of quiescent, operating and peak currents
- Calculation of power, energy and charge balance
- Factory-calibrated as one unit
- Autostart on power-up
- CAN 2.0 interface, automatic DBC generation
- Configurable via KlariToolBox
Version

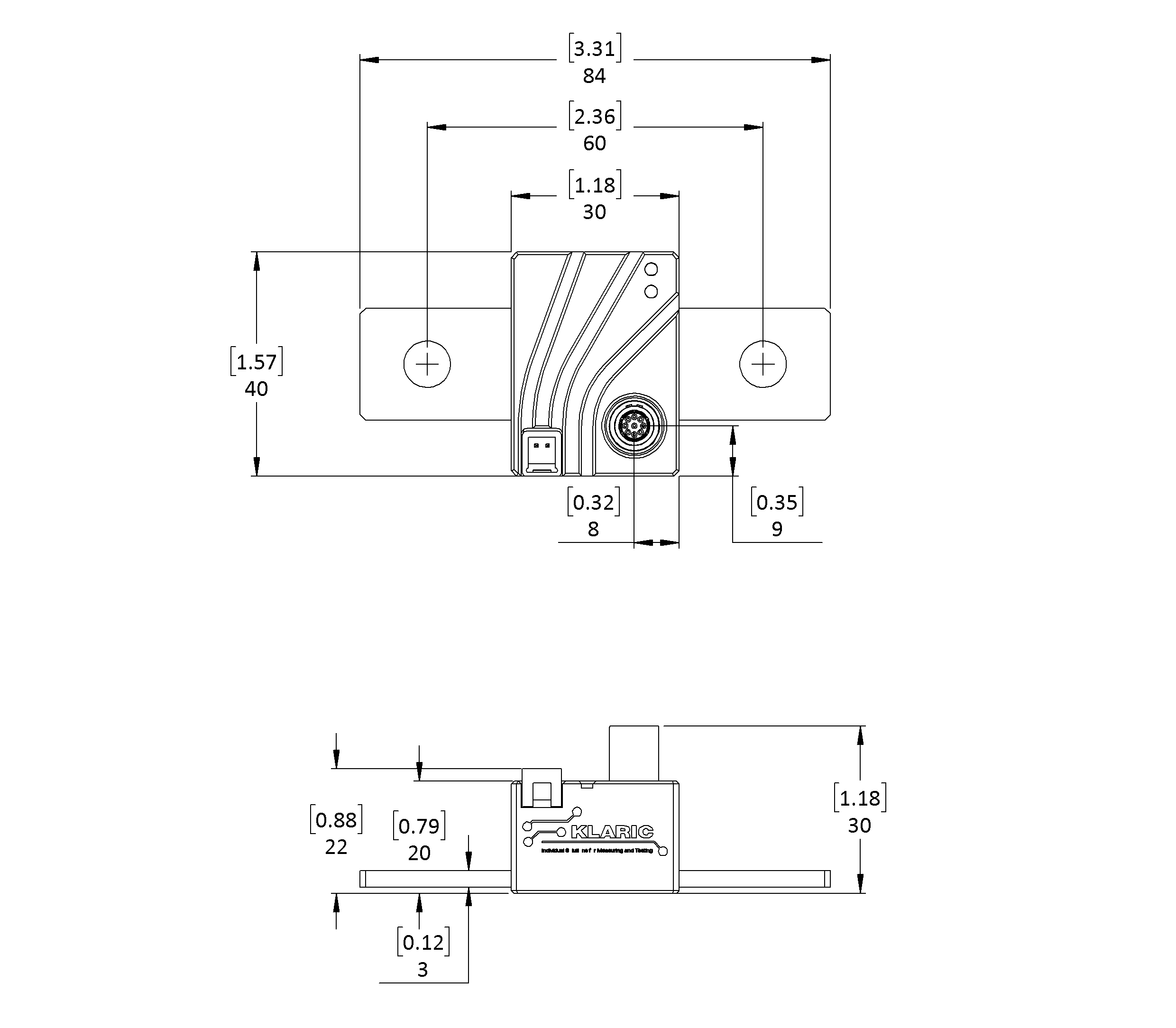

- Compact encapsulated enclosure, approx. 40 × 31.5 × 20 mm without connectors
- Protection class: IP65
- Temperature range -40 °C to +85 °C (optional +120 °C)
- Supply voltage 7 V to 48 V DC (approx. <0.5 W)
Accessories
- CAN cable harness with power supply
- Battery connection cable set (35 mm², 70 mm², 90 mm²)
Applications
- Dual-channel current and voltage measurement for complete vehicles
- Main current path monitoring in 12/24/48 V systems
- Long-term quiescent current measurement
- Charge and discharge profiles, battery and BMS testing
- Component tests with fixed installation, OEM integration
Scope of Delivery
- Measurement module FIX-IV
- Factory calibration certificate (DAkkS optional)
- DBC file and documentation
- KlariToolBox configuration software
Technical Data
| |
|---|
| Inputs | 1 input |
| Connectivity | Current and voltage |
| Resolution | 16 bit ADC with 5 measurement ranges |
| Sample Rate | 0.25 Hz to 8kHz configurable |
| Shunt type | 100 μΩ, 200 μΩ, 500 μΩ, 1 mΩ and 2 mΩ |
| Measuring chain accuracy | ± 0.1 % of measured value, ± 3 LSB of measurement range (at 23 °C ± 5 °C) |
| CAN | 125k, 250k, 500k, 1000k baud configurable; internal CAN termination switchable via software; CAN base ID configurable |
| Configuration via | CAN (KlariToolBox) |
| Voltage supply range | 7 V – 48 V DC |
| Power consumption | approx. <0.5 W |
| Temperature Range | -40 °C to +85 °C (optional -40 °C to +120 °C) |
| Protection Class | IP65 |
| Calibration | 12 months |
